Brightfield illumination is the most accessible form of transmitted and reflected light microscopy. It’s frequently used in education, laboratories, routine industrial processes, and academic and industrial research because it provides clear images of stained or naturally pigmented specimens.

This article introduces the core principles of brightfield microscopy and explains how to align the optical components for optimal image quality. Whether you're a student, educator, or early-career microscopist, this guide will help you build a solid foundation in brightfield illumination light microscopy.

Key learnings:

• Fundamentals and working principles of brightfield illumination
• Setup and alignment of a brightfield microscope
• Applications and advantages of brightfield technique
• Best practices for beginners in light microscopy

Here’s how a typical brightfield setup works in transmitted light:

1. A light source (usually LED or halogen) illuminates the specimen from below.
2. The condenser forms a cone of light to illuminate the specimen. This light passes through the sample.
3. The objective lens collects the transmitted light and forms a scaled-up intermediate image.
4. The image is magnified and viewed through the eyepiece or captured by a camera.

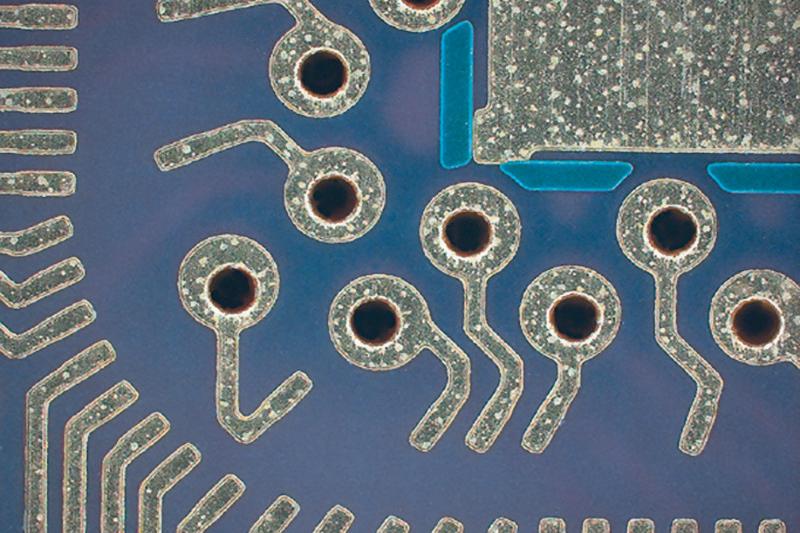

Here’s how a typical brightfield setup works in reflected light:

1. A light source (usually LED or halogen) illuminates the specimen from above.
2. The reflector module carries a semi-transparent mirror and reflects half of the light towards the objective and the specimen. On the way back it lets half of the reflected light from the specimen pass the semi-reflected mirror
3. The objective
4. a) forms a cone of light to illuminate the specimen from above.
5. b) forms the scaled up intermediate image.
6. The Eyepiece or camera magnifies and provides or captures the image.

It is essential to align your microscope according to the rules of Koehler Illumination – a method that ensures optimal resolution and contrast, even illumination, and thus the best image quality combined with reproducibility and reliability of your results.
